Mercedes-Benz Sprinter Family XL

The Vansmith Sprinter Family XL is a built-to-order Class B camper van on the extended Mercedes-Benz Sprinter 170 AWD chassis (also available on the Ford Transit 148 Extended). It seats up to five with 3-point belts and sleeps three or more, with roughly 22.5 ft of van so nobody is climbing over anybody.

WHAT IS INCLUDED

Sleeping: VersaBed near-queen, extendible to near-king, with a custom-cut 6 in memory foam mattress.

Galley: 60 in handcrafted bamboo countertop with sink and faucet, 80L fridge/freezer, and a post-mounted table.

Water: 20 gallons fresh water in the proprietary wheel-well box, plus a 5 gallon gray water system under the sink.

Electrical: 5kWh lithium smart system with 300W solar, shore power and alternator charging. Lighting package (ceiling and upper-cabinet LEDs, reading lamp with USB) and outlet package (USB, 12V and 110V).

Climate: 4-season synthetic insulation and a front-position ceiling vent fan.

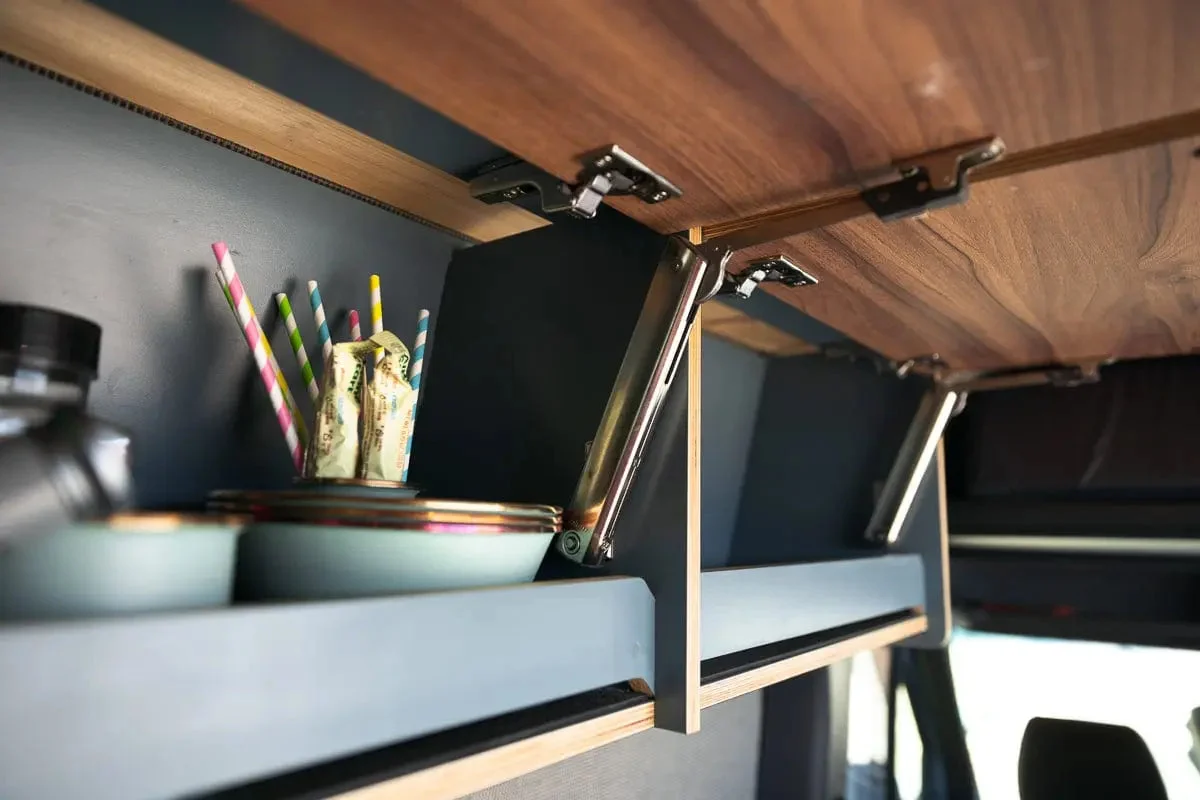

Interior: Prefinished birch walls and ceiling, Dover White cabinets, Coindot floor, full-length upper cabinet on the driver side, and a storage bench on the passenger side.

Safety: Fire extinguisher and smoke detector.

BUILD IT YOUR WAY

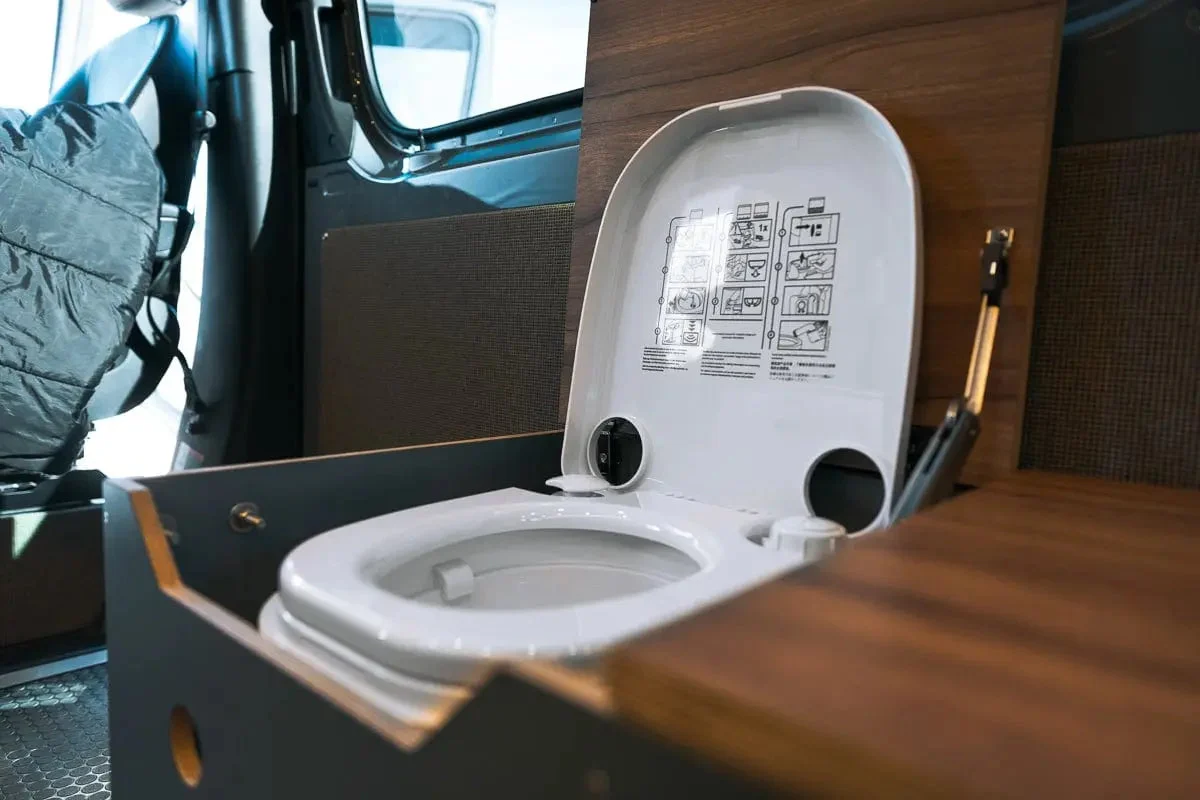

Every Family XL is configured to order. Popular upgrades include a bunk bed platform with custom mattress under the main bed, Cabbunk kids hammock beds over the front seats, a Luno front cab mattress, pop-top, bench shower or Tetravan shower, toilet bench with cassette, separating or dry-flush toilet, exterior shower with propane heater, 30 gallons fresh water, electric or Rixen hydronic water heating, 10kWh or 15kWh electrical systems with secondary alternator charging, Velit 10kBTU or RecPro 13.5kBTU air conditioning, gas or diesel cabin heat, a 130L fridge, induction cooktops, Flarespace flares, long Fiamma awning, roof rack, ladder and tire carrier, rear door platforms, bike racks, Starlink Mini, WeBoost, and Van Compass stage 4 suspension.

Build time is 12 to 16 weeks for a tailored build. Backed by The Vansmith lifetime cabinet warranty for the original owner, with 300+ vans built and a 4.8 star rating.
